Framing Nailers

18V F-RAPIDFIRE 10Ga 30º-34º Framing Nailer Skin

A18F10FN0

I/N: 0298398
$ 611.00
Add/Remove Wishlist

Price correct as of 25th December 2024, 08:30am.

This page is for product information only and item/s may be unavailable for purchase, contact your local Bunnings store for availability/price.

AEG has revolutionised framing nailers by engineering the 18V F-RAPIDFIRE 10Ga 30-34 Degree Framing Nailer. No gas cartridges, no pneumatic hoses and no waiting to ramp up & fires 3 nails per second in bumpfire mode.

The powerful FUSION brushless motor provides maximum firing efficiencies with up to 1,000 shots per charge (on a fully charged 6.0Ah battery).

The secret behind AEG's success is a refillable compressed air canister (which only needs boosting every 20,000 nails or so).

The magazine holds 67 nails and fires 50-90mm paper collated nails either in full sequential mode (trigger) or contact actuation mode (bumpfire).

Recharging is easy, simply connect to any portable high pressure inflator and pressurise to 125 PSI.

No costly cartridges to keep purchasing, no compressor and hoses to drag around - it's a no-brainer.

The nailer has a dryfire lockout feature that reduces jams and dry shots.

It comes with a rafter hook and belt clip to enable you to keep it close by at all times your onsite. Being an 18V tool, it runs off the same batteries that power more than 80 tools in the range.

**Battery and Charger sold separately**

  • default alt text
    Powerful F-RAPIDFIRE Brushless Motor - maximum power and firing efficiency.
  • feature default fallback image
    Innovative Air Drive Spring Technology - zero ramp up time.
  • feature default fallback image
    The tool-free depth adjustment
  • feature default fallback image
    Onboard Jam Wrench Storage
  • default alt text
    rafter hook (built-in) and belt hook
  • default alt text
    Drives Up To 1,000 Nails Per Charge
  • default alt text
    An extended nail magazine available for separate purchase
  • feature default fallback image
    Refillable Canister
  • default alt text
    Dry Fire Lockout
  • default alt text
    LED Feedback
18V F-RAPIDFIRE 10GA 30º-34º FRAMING NAILER SKIN
POWERFUL F-RAPIDFIRE MOTOR

POWERFUL F-RAPIDFIRE MOTOR

Adding to the FUSION range of tools, the powerful F-RAPIDFIRE Brushless Motor provides maximum power and firing efficiencies. Being a FUSION tool, it’ll talk to your connected FORCE battery, giving you pneumatic performance in a cordless 18V system.

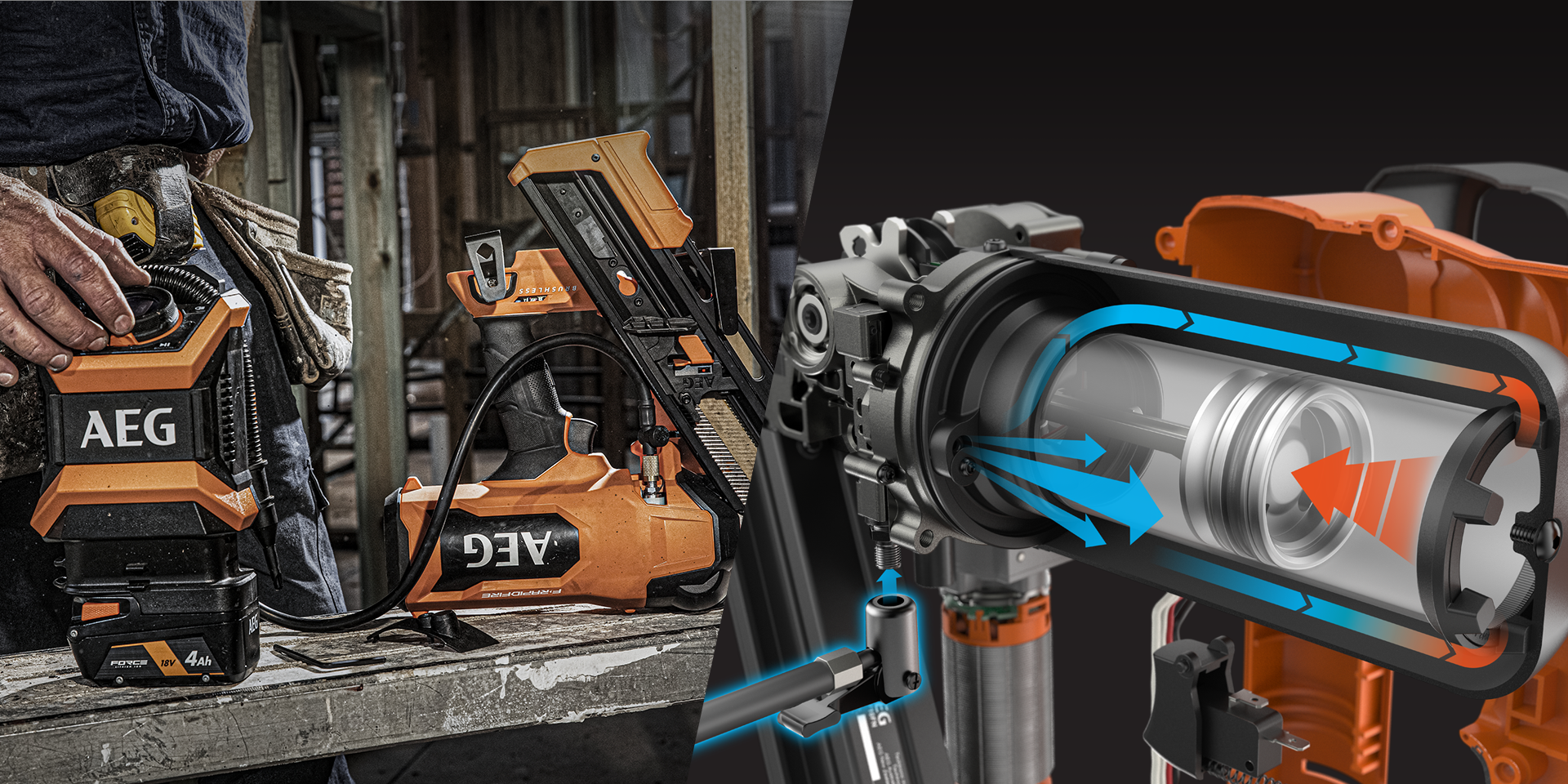

INNOVATIVE AIR DRIVE SPRING TECHNOLOGY

INNOVATIVE AIR DRIVE SPRING TECHNOLOGY

AEG’s powerful and innovative Air Drive Spring Technology provides the reliability and force needed to fire up to 3 nails per second in bumpfire mode, with zero ramp up time and without any of the hassles associated with hoses and bulky compressors.

DRY FIRE LOCKOUT

DRY FIRE LOCKOUT

Engineered to reduce jams and dry shots, another way the F-RAPIDFIRE Framing Nailer saves you time on the job.

REFILLABLE CANISTER

REFILLABLE CANISTER

After shooting 20-30 thousand nails, you might experience a slight loss in pressure. No issues. The refillable tank can be pressurised onsite, with any portable high pressure inflator or compressor. Just set to 125 PSI and you’re good to go.

LED FEEDBACK

LED FEEDBACK

The LED panel on the tool alerts users to jams, dry fires and empty nail magazine.

Tool Free Adjustable Countersink

Tool Free Adjustable Countersink

The tool-free depth adjustment means you can choose how far to countersink nails, or adjust the setting to leave them ‘proud’ for easier removable in temporary construction.

DRIVES UP TO 1,000 NAILS PER CHARGE

DRIVES UP TO 1,000 NAILS PER CHARGE

The combination of the innovative FUSION Brushless Motor, Air Drive Spring Technology and connected FORCE battery, provides maximum power and firing efficiencies to enable you to get up to 1,000 shots out of a fully charged 6.0Ah battery.

    What's Included Description

    whats included default image thumbnail
    No Mar Tip
    1
    18V F-RAPIDFIRE 30º-34º Framing Nailer  (A18F10FN0) thumbnail
    18V F-RAPIDFIRE 30º-34º Framing Nailer (A18F10FN0)
    (A18F10FN0)
    1
    Heavy Duty Carry Case thumbnail
    Heavy Duty Carry Case
    (AEGBMC01)
    1
    Belt Hook thumbnail
    Belt Hook
    (659358002)
    1
    whats included default image thumbnail
    Manual
    (M2024)
    1
    Voltage
    Voltage
    18V
    Fastener Length
    Fastener Length
    50 /90mm
    Bump Fire Rate
    Bump Fire Rate
    3 NailsSecond
    Fastener Collation angle
    Fastener Collation angle
    10GA Framing Nail – 30 - 34° Angled
    Capacity
    Capacity
    67
    Weight
    Weight
    4.2Kg

    There are currently no manuals available. If you need further support, please contact us.
